  • Cruz — CRUZ 200 3200-940

Cruz / CRUZ 200 3200-940

96295127

▼ Data Sheet

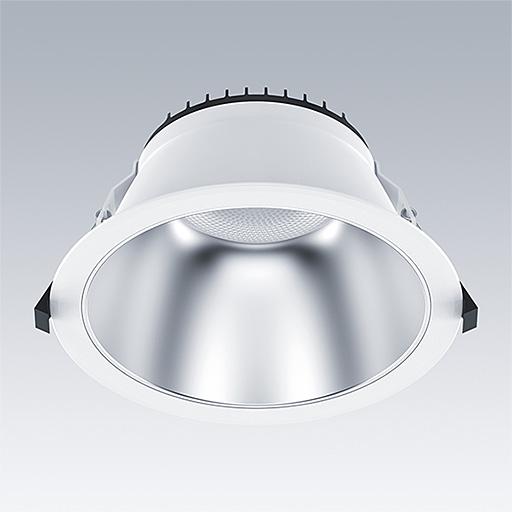

LED downlight meets lighting requirements for education. A highly efficient and sustainable LED downlight with low height provides harmonious light (UGR<19). High quality lighting color performance CRI90, R9>50 and SDCM3. On-off control gear. Lumen switch via dip switch on driver, cutout Φ150mm: 2000lm/ 1700lm/ 1500lm/ 1200lm,  cutout Φ200mm: 3200lm/ 2900lm/ 2650lm/ 2400lm. Body: die-cast aluminium in white, for high efficient thermal management. Diffuser: polycarbonate. Smooth reflector in satinbrite finish. Class II electrical (this product is not earthed), IP54_IP20, Impact strength: IK03. Complete with 4000K LED.

Dimensions: Ø235 x 111 mm
Luminaire input power: 22.5 W
Luminaire luminous flux: 3134 lm
Luminaire efficacy: 139 lm/W
Weight: 0.61 kg

Mode selection
    • NoIsol
    • 750°
    • IK03
    • IP54_IP20
    • RCM
    • SC2
    • Ta = -20 to +40

    ▼ Photometry

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
