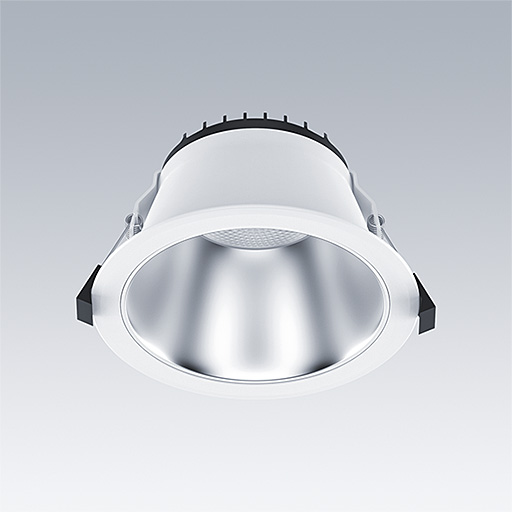

Cruz / CRUZ 150 2000-940

96295126

Data Sheet

LED downlight meets lighting requirements for education. A highly efficient and sustainable LED downlight with low height provides harmonious light (UGR<19). High quality lighting color performance CRI90, R9>50 and SDCM3. On-off control gear. Lumen switch via dip switch on driver, cutout Φ150mm: 2000lm/ 1700lm/ 1500lm/ 1200lm,  cutout Φ200mm: 3200lm/ 2900lm/ 2650lm/ 2400lm. Body: die-cast aluminium in white, for high efficient thermal management. Diffuser: polycarbonate. Smooth reflector in satinbrite finish. Class II electrical (this product is not earthed), IP54_IP20, Impact strength: IK03. Complete with 4000K LED.

Dimensions: Ø170 x 92 mm
Luminaire input power: 14.8 W
Luminaire luminous flux: 1920 lm
Luminaire efficacy: 130 lm/W
Weight: 0.41 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1920 lm
  • Luminaire efficacy*:130 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:14.8 W Power factor = 0.95
  • Dimming:ON_OFF
  • Maintenance category CIE 97:C - Closed Top Reflector
  • Total harmonic distortion (THD):20.00 %
  • LED
  • NoIsol
  • 750°
  • IK03
  • IP54_IP20
  • RCM
  • SC2
  • Ta = -20 to +40
