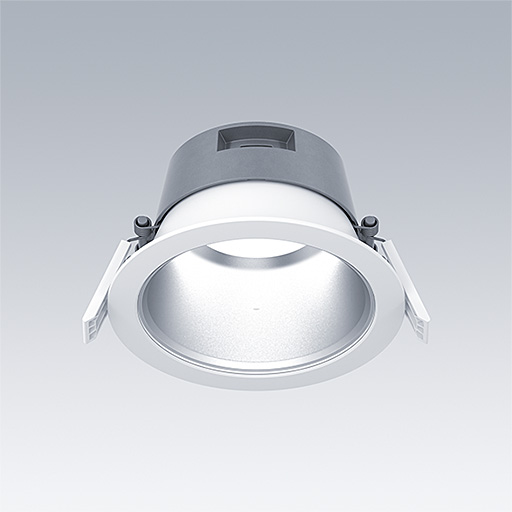

Chalice 3 / CHAL3 150 2000-840 EHF RSB IP65

A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam and additional ultrasonic welded clear polycarbonate cover IP65. Class II electrical (this product is not earthed), IP20. Complete with 4000K LED

Dimensions: Ø174 x 94 mm
Luminaire input power: 16.9 W
Luminaire luminous flux: 1910 lm
Luminaire efficacy: 113 lm/W
Weight: 0.71 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1910 lm
• Luminaire efficacy*:113 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003812 LC 25/200-650/38 NF SR EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:16.9 W Power factor = 0.88
• Dimming:FIX
• Maintenance category CIE 97:C - Closed Top Reflector
