  • LED Fit 2 — LED FIT 2 30-60W 830-840 HFX GY

LED Fit 2 / LED FIT 2 30-60W 830-840 HFX GY

96638435

▼ Data Sheet

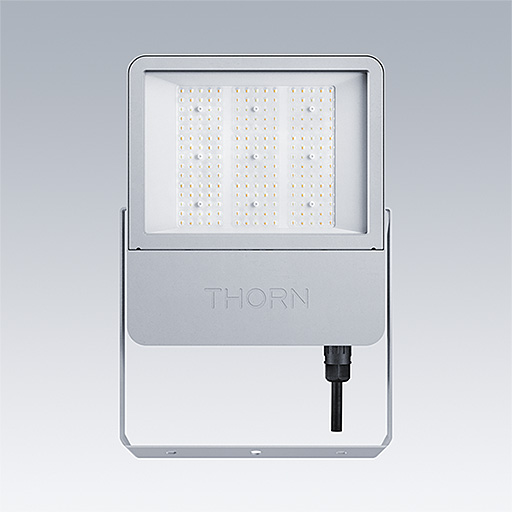

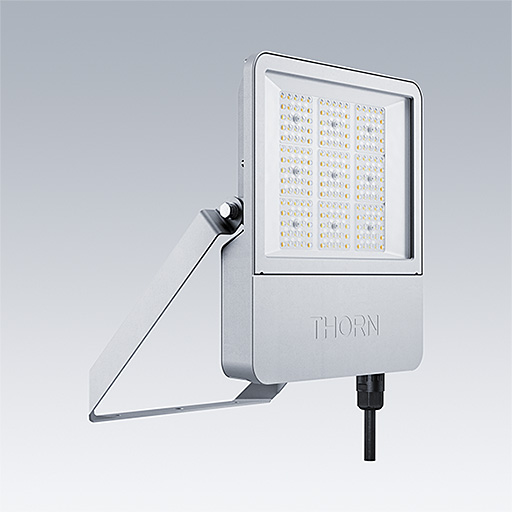

LED FIT 2 is designed for general area floodlighting applications. Provides an easy selection of the desired light output and color temperature, which can be adjusted. LED area floodlight with wide, asymmetric optics (65° x 110° beam, ±5°), DALI dimmable, Class I electrical, IP66 (IP65 with photocell accessory), Impact strength: IK08 (IK04 with photocell accessory). Body: , aluminium die casting alloy, grey, (close to RAL9006). Corrosion-resistant (class C4). Offers the possibility of mounting on a wall, floor or column using an adjustable stirrup bracket, as well as tool-free access to the lumen and CCT switches. When powered on, initial light output is at maximum for 7 seconds before automatically adjusting to the selected level.

Dimensions: 275 x 310 x 55 mm
Luminaire input power: 64 W
Luminaire luminous flux: 9482 lm
Luminaire efficacy: 148 lm/W

Mode selection
    • ENEC
    • 650°
    • IK08
    • IP66
    • LED
    • RCM
    • SC1
    • Ta=-30_+50
    • UKCA
