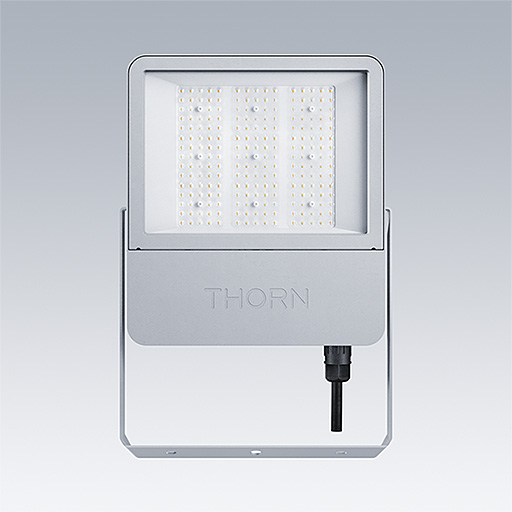

LED Fit 2

Low to medium output outdoor luminaire, for general area floodlighting applications.

• During installation, easily select the desired light output between 5,000 and 10,000 lumens (nominal) using the accessible mechanical switch.
• Quick and easy selection during installation of correlated color temperature (CCT) between 3000 K and 4000 K using a simple mechanical switch.

• Wide, asymmetric optics (65° x 110° beam, ±5°) are ideal for illuminating building perimeters, parking areas, and other open spaces. When mounted horizontally, there is zero upward light in line with Dark Sky principles.
• Corrosion class C4, ideal for outdoor environments greater than 5 km from the coast.
• A DALI driver is supplied as standard for connection to a DALI control system when required. An optional photocell accessory is available (switch on at 50 lux and switch off at 150 lux).
• Product lifetime is up to 100,000 hours.
  L80B10 / 50,000 hours to L90B10.

Materials and Finish

Luminaire body is made of die-cast aluminum. It is corrosion-resistant (class C4 according to ISO 9223:2012) with a light gray finish (close to RAL 9006). Toughened glass cover and high mechanical resistance IK08 (IK04 with photocell accessory). High Ingress Protection IP66 (IP65 with photocell accessory).
