Optus
LED batten meeting lighting requirements for education
- Rectangular shape provides a functional profile without dominating the architecture
- Integrated LED Batten with prismatic polycarbonate diffusor provides harmonious light (UGR<19)
- High quality lighting color performance CRI90, R9>50 and SDCM3
- High system efficacy up to 125lm/W
- Lumen switch via dip switch on driver, 1.2m: 4100lm/ 3400lm/ 2800lm, 1.5m: 4700lm/ 3900lm/ 3200lm
- Long 50,000 hours lifetime, reduce maintenance cost
Materials and Finish
Housing: extruded aluminum, white finish (RAL 9016)
End cap: polycarbonate and ABS
Diffusion film: polycarbonate
Diffuser: prismatic polycarbonate
Installation and Mounting

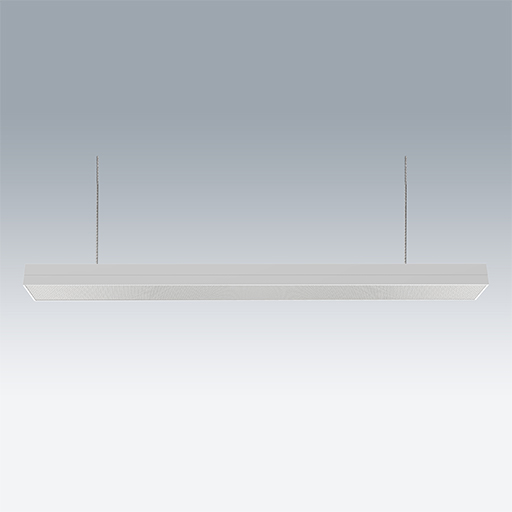

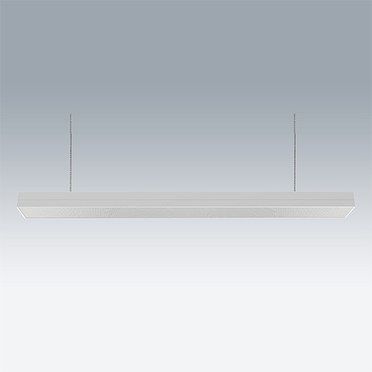

Surface mounted. Cable entry hole in the back spine with optional cable entry through each end cap. Can be suspended using wire suspension accessory kit (to be ordered separately). 3 x 2 x 2.5mm² terminal block supplied for easy and quick looping.
Specification
To specify state:
Elegant look, integrated LED Batten with prismatic polycarbonate diffusor provides harmonious light (UGR<19). 2 sizes available: 1200*120mm and 1500*120mm. Total luminous flux: 4100lm/ 3400lm/ 2800lm and 4700lm/ 3900lm/ 3200lm, luminaire input wattage: 36W/ 30W/ 24W and 38W/ 31W/ 25W, CCT 4000K. Long 50,000hrs lifetime. CRI > 90, R9 > 50, SDCM 3. Suitable for surface and suspended mounting.
As Thorn Optus
- New Product
▼ Optus
| Description | Type | Socket | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| OPTUS 1200 4100-940 | LED | LED | 2.10 | 96295123 | |||||
| OPTUS 1500 4700-940 | LED | LED | 2.68 | 96295122 |
