  • College C — COLLEGE C 2500-940 L1200 PC CL

College C / COLLEGE C 2500-940 L1200 PC CL

96653181

▼ Data Sheet

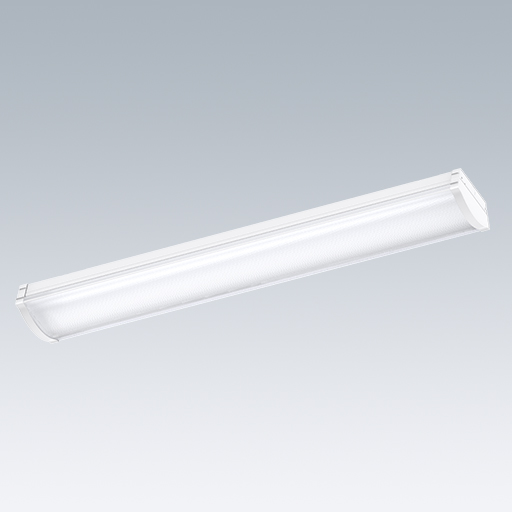

Curved profile linear LED luminaires with prismatic diffusers for surface or suspended mounting.Suitable for workplace and school applications.Harmonious lighting output, UGR<19. High quality color performance, CRI>90, R9>50 and SDCM<3. Electronic, On-off control gear. Class I electrical, IP40. Impact strength: IK06. Body: stamping sheet metal in white. Diffuser: polycarbonate. Can be suspended using wire suspension accessory kit (to be ordered separately). 3 x 2 x 2.5mm² piano key terminal block. Complete with 4000K LED

Dimensions: 1200 x 200 x 96 mm
Luminaire input power: 20.6 W
Weight: 3.84 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2470 lm
  • Luminaire efficacy*:120 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Ballast:1x EL2
  • Luminaire input power*:20.6 W Power factor = 0.9
  • Dimming:ON_OFF
  • LED
  • 650°
  • IK06
  • IP40
  • RCM
  • SC1
  • Ta = -20 to +40
