Over 2800 Thorn luminaires supplied for new hospital wing.
Thorn product is extensively used throughout the Hospital including a large quantity of Quattro T luminaires installed in the older hospital wings.
Since 2003 Middlemore Hospital, one of the largest tertiary teaching hospitals in New Zealand has been undergoing complex redevelopment. The hospital services the wider South Auckland community and offers both general and specialist care with admittances exceeding 91,000 patients annually, before taking into account the 354,000 day/out-patients cared for by 4,000 full time employees.
The newly completed five storey Clinical Services Building is fitted with 2850 Thorn luminaires most of them designed in-house and manufactured in our local Auckland factory.
The Solution:

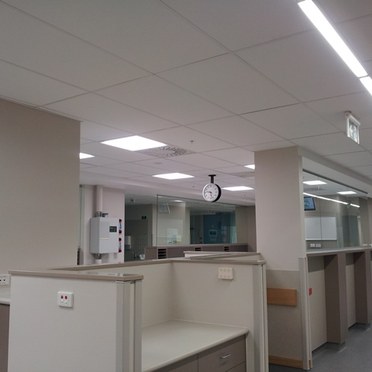

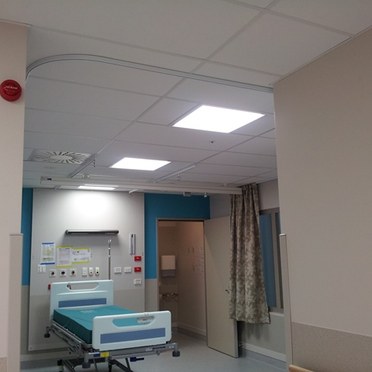

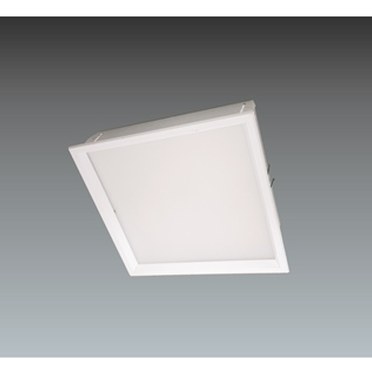

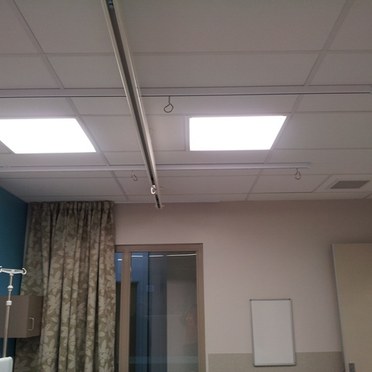

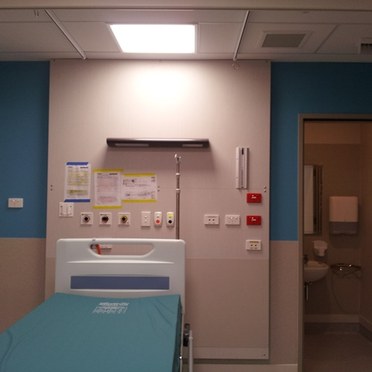

Thorn luminaires were specified for all areas of the new wing with Invincibles and Duoproof in operating theatres and hygiene controlled areas. Locally manufactured PopPacks were placed in offices, corridors and utility spaces. Over 700 Quattro T luminaires using 36W Fluorescent tubes fitted with type B1 ballasts and sealed, wipe-down diffusers were specified by Project Consultants, Beca. The varied lighting requirements were complemented by a combination of Quattro LEDNZ (using Tridonic LED panels and drivers) and Base LEDs for consulting rooms and nurses’ stations.
Other products specified include: Aquaforce II, D-CO LED, IndiQuattro, Cesar and Lite Line Trunking.
The Benefits:

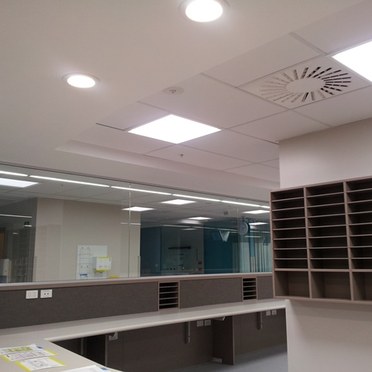

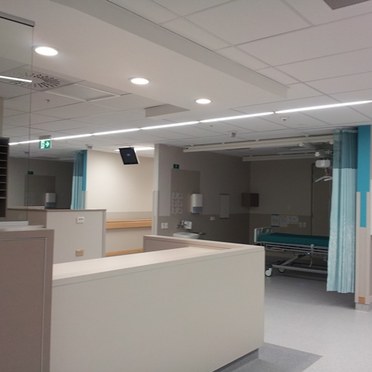

Use of LED lighting in high use areas such as nurses’ stations and consulting rooms ensures energy savings when compared with long-standing wings of the hospital fitted out with old style fluorescent tubes.
The typical 50,000 hour LED lifetime means maintenance costs will be substantially lower.
The quality of light in the new wing inspires a level of confidence due to its clean, professional and efficient feel.
Key Facts
- Energy saving: Up to 50%
- LED lifetime: Up to 50,000 hours
