Chartor (APAC)

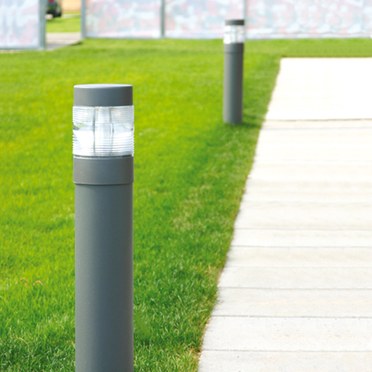

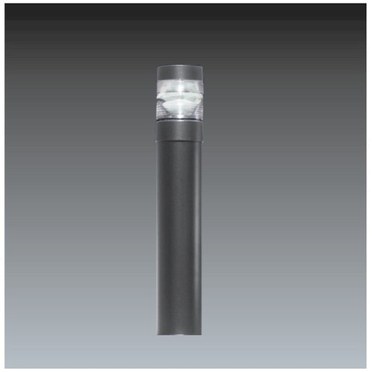

A timeless class 2 bollard offering visual guidance and comfortable light, 360 degree distribution with minimal glare or uplight component
- Suitable for any application thanks to high specs and two mounting types: base plate (MPL) and ground (MGR)
- Simply order one post and one head, for a complete bollard.
- The LED head can be easily connected to all Chartor Bollard types for refurbishment to a low power, low maintenance luminaire. Simply connect the LED driver directly to the mains
Materials and Finish
Head: die-cast aluminium, black or grey colours available.
Diffuser and reflector: clear polycarbonate.
Post: galvanised steel or painted powder coat black.
Installation and Mounting
Base plate or buried mounting, latter option embeds 450mm into the ground. 250mm base plate version fixes via four Ø 15mm holes at 200mm centres. Ø 60mm central hole for wiring. Three way terminal block for 2 x 2.5mm² cable. Post and Head to be lined up as for the installation instructions.
Specification
To specify state:
Bollard with 360 degree distribution and minimal up light component.
As Thorn Chartor LED.
- New Product
New Product
LumExpress Product
eControl Product
▼ Chartor, head, black
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CHARTOR HEAD G2 LED800-840 BK | 11 | 950 | LED | 3.00 | 22675986 |
▼ Chartor, head, aluminium
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
CHARTOR HEAD G2 LED800-840 AL | 11 | 950 | LED | 3.00 | 22675985 |
▼ Chartor, post, black
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
CHARTOR POST MGR BK | 10.00 | 96018951 | |||||||
CHARTOR POST MPL BK | 12.00 | 96018939 |
▼ Chartor, post, galvanised
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
CHARTOR POST MGR GAL | 10.00 | 96031975 | |||||||
CHARTOR POST MPL GAL | 12.00 | 96031973 |
