  • Chartor (APAC) — CHARTOR HEAD G2 LED800-840 BK

Chartor (APAC) / CHARTOR HEAD G2 LED800-840 BK

22675986

▼ Data Sheet

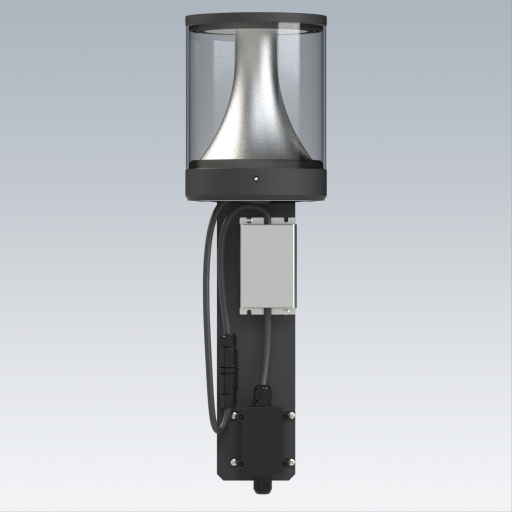

The second generation of timeless bollard offering modest visual guidance and comfortable light with low glare. Electronic, fixed output control gear. Body: die-cast aluminium in glossy black (close to RAL9005). Front cover: clear anti UV PC. Class II electrical (this product is not earthed), IP65, Impact strength: IK08. Complete with 4000K LED.

Dimensions: Ø150 x 199 mm
Luminaire input power: 11.1 W
Luminaire luminous flux: 960 lm
Luminaire efficacy: 86 lm/W
Weight: 3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:960 lm
  • Luminaire efficacy*:86 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L70 50000 h at 35 °C
  • Ballast:1x EL2
  • Luminaire input power*:11.1 W Power factor = 0.9
  • Dimming:FO
  • LED
  • IK08
  • IP65
  • RCM
  • SC2

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
