  • Panther — PANTHER 1500 LED OP SQ WHI TC

Panther / PANTHER 1500 LED OP SQ WHI TC

96294650

▼ Data Sheet

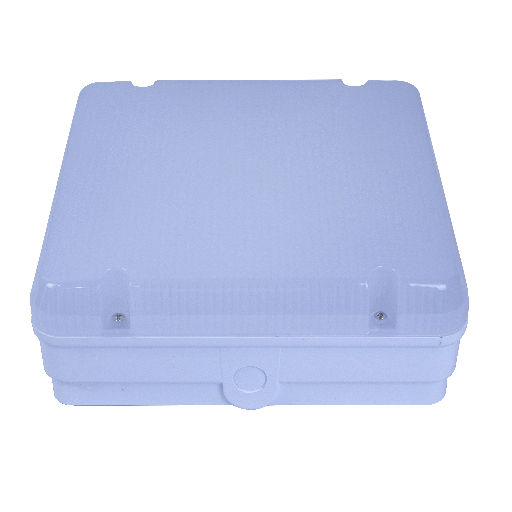

A square bulkhead LED luminaire. Fixed output LED driver. Body: white polycarbonate. Diffuser: opal polycarbonate. Class I electrical, IP65, Impact strength: IK10. Complete with switchable tri-colour 3000K, 4000K, 5700K LEDs.

Dimensions: 255 x 255 x 100 mm
Weight: 1.1 kg

Mode selection
  • Lamp position:4000K
  • Light Source:LED
  • Luminaire luminous flux*:1451 lm
  • Luminaire efficacy*:104 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:14 W
  • Dimming:FIX
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • 650°
  • IK10
  • IP65
  • RCM
  • RoHs
  • SC1
  • Ta=-20°C_to_+40°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
