Home / Products / Indoor Lighting / Wall and Ceiling Decorative Luminaires / Luna 2 / Luna 2 / LUNA 2 VCT 400 25W 830/840/857 WH DIM
  • Luna 2 — LUNA 2 VCT 400 25W 830/840/857 WH DIM

Luna 2 / LUNA 2 VCT 400 25W 830/840/857 WH DIM

96295115

▼ Data Sheet

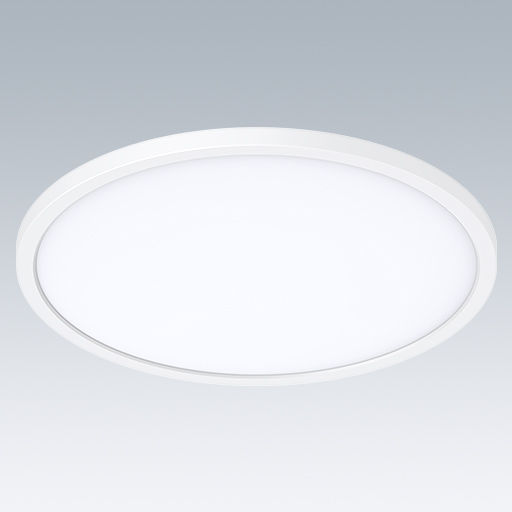

Ultra slim, integrated edge lit LED bulkhead provides harmonious light for indoor application. Class II electrical (this product is not earthed), Impact strength: IK03, IP54. Electronic, phase-cut dimmable control gear. Housing: polycarbonate in white. Diffuser: opal polucarbonate. CCT switch 3000K/ 4000K/ 5700K available via slide switch.

Dimensions: Ø400 x 27 mm
Luminaire input power: 25 W
Luminaire luminous flux: 2922 lm
Luminaire efficacy: 117 lm/W
Weight: 0.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2922 lm
  • Luminaire efficacy*:117 lm/W
  • Colour Rendering Index min.:80
  • Chromaticity tolerance (initial MacAdam):6
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:25 W Power factor = 0.9
  • Dimming:PCDCG
  • LED
  • 750°
  • IK03
  • IP20_IP54
  • RCM
  • SC2
  • Ta = -20 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
