Luna 2 / LUNA 2 VCT 250 12W 830/840/857 WH DIM

96295113

▼ Data Sheet

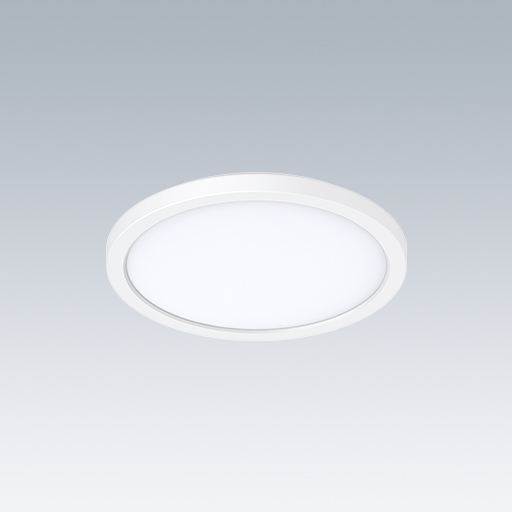

Ultra slim, integrated edge lit LED bulkhead provides harmonious light for indoor application. Class II electrical (this product is not earthed), Impact strength: IK03, IP54. Electronic, phase-cut dimmable control gear. Housing: polycarbonate in white. Diffuser: opal polucarbonate. CCT switch 3000K/ 4000K/ 5700K available via slide switch.

Dimensions: Ø250 x 27 mm
Luminaire input power: 11.7 W
Luminaire luminous flux: 1116 lm
Luminaire efficacy: 95 lm/W
Weight: 0.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1116 lm
  • Luminaire efficacy*:95 lm/W
  • Colour Rendering Index min.:80
  • Chromaticity tolerance (initial MacAdam):6
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:11.7 W Power factor = 0.9
  • Dimming:PCDCG
  • LED
  • 750°
  • IK03
  • IP20_IP54
  • RCM
  • SC2
  • Ta = -20 to +40
