  • Jewel — JEWEL 2 LED BULKHEAD OP WHI TC

Jewel / JEWEL 2 LED BULKHEAD OP WHI TC

96294620

▼ Data Sheet

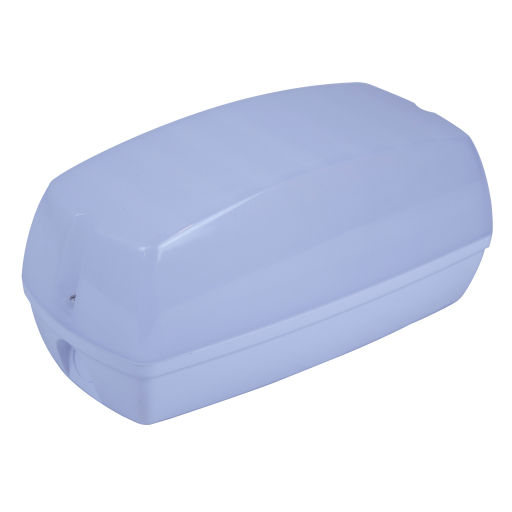

Surface mounted LED luminaire, compact size with smooth lines. Fixed output, LED driver with switch for selection of colour temperature (3000K, 4000K, 5700K). Body: polycarbonate. Diffuser: opal polycarbonate. Sealed to IP65, Impact strength: IK10. Colour Rendering Index min.: 80. Suitable for indoor or outdoor use. Complete with tri-colour LEDs.

Dimensions: 240 x 116 x 130 mm
Luminaire input power: 10 W
Weight: 0.37 kg

Mode selection
  • Lamp position:4000K
  • Light Source:LED
  • Luminaire luminous flux*:1052 lm
  • Luminaire efficacy*:105 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:10 W Power factor = 0.9
  • Dimming:FIX
  • LED
  • 750°
  • IK10
  • IP65
  • RCM
  • RoHs
  • SC2
  • Ta=-20°C_to_+40°C
