Caelon S

Installation and Mounting

Suitable for surface mounting on the ground, walls or under canopies.
Can be ground mounted using ground spike accessory (21100448).
Supplied with 2 cable glands for loop-in/loop-out and simple terminal block, accessible from the rear of the housing.
Cable sizes : 7.5 - 14mm outer diameter
Dynamic White uses 2 addresses
RGBW uses 4 addresses
RGBW with 5D lens uses 5 addresses

Specification

To specify state:

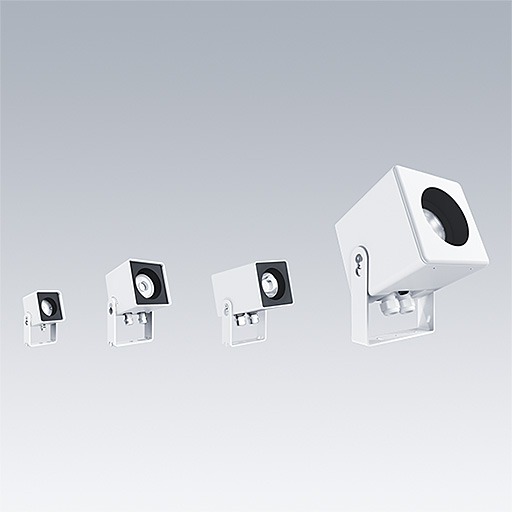

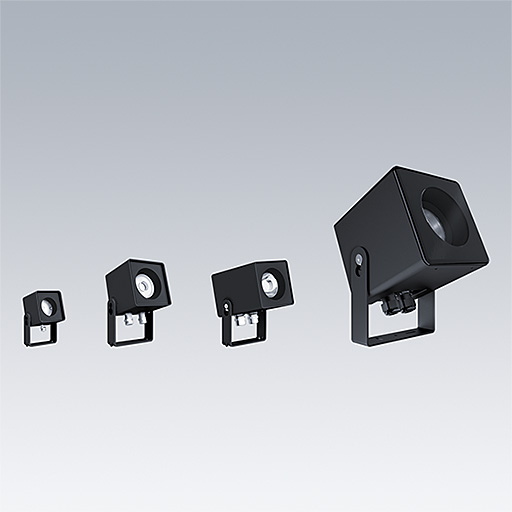

Family of discreet architectural floodlight with high quality aethetic design available in three sizes and two standard colors (black, white). A choice of symmetric optics from super narrow to wide flood, and linear horizontal and vertical beams for added design style. Integral honeycomb louvre option for beam diffusion and optional cowl accessory for enhanced light control. CRI 80 for all white light versions, available in 2700K, 3000K and 4000K. RGBW and Dynamic White versions can be used to add visual interest and introduce colour into the space.
Suitable for surface mounting to ground, walls or under canopies. The optional ground spike is ideal for landscaping projects.
Caelon S3x and S7x require separate remote mounted drivers. S7i/12i/20i/30i include integral drivers with a choice of switched (HF) or dimming - DALI (HFX), DMX-RDM (DMX) and wireless (BC).
With optional 'One Technology' including 5D adjustable lens, Clean Beam Design for ultra-sharp lighting performance and User Connect, wirelessly controlled using 4RemoteBT app, for simple and flexible connectivity.
As Thorn Caelon S
