  • Voyager Emergency range — <VOYAGER TS E2NM

Voyager Emergency range / <VOYAGER TS E2NM

96294585

▼ Data Sheet

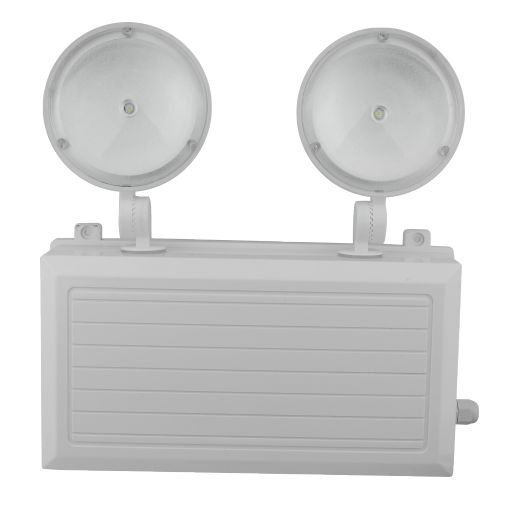

A adjustable twin spot LED emergency luminaire. Efficient, long life, non-maintained, surface wall mounted. With reliable lithium iron phosphate battery. Manual test switch. Polycarbonate housing in white finish, IP65. Adjustable heads in the horizontal and vertical planes. With wide distribution for large emergency escape coverage it is ideal for open areas (AS/NZS 2293). Light weight and with flex and plug for simple installation. Dual charge rate, 5.3W max, 1W standby.

C0 - D2.5
C90 - D4.0

Mode selection
  • Lamp position:STD - standard
  • 650°
  • IK07
  • IP65
  • RCM
  • RoHs
  • SC2
  • Ta = 0 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
