  • Voyager Emergency range — VOYAGER BLADE RECESSED 24M E2M

Voyager Emergency range / VOYAGER BLADE RECESSED 24M E2M

96294582

▼ Data Sheet

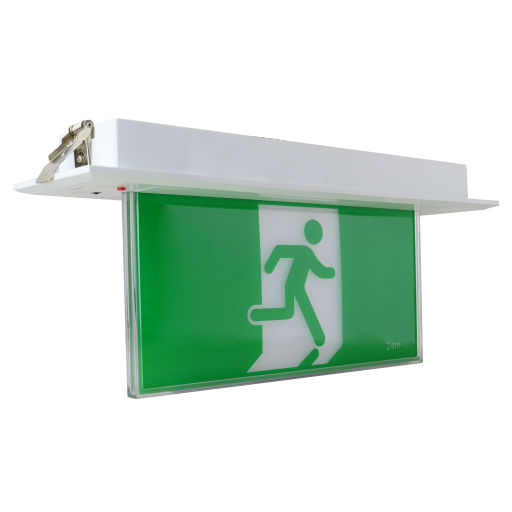

Universal LED escape sign luminaire, for recessed ceiling mounting. Slim blade for enhanced design aesthetics. Maintained operation. With reliable lithium iron phosphate battery. Manual test switch. Supplied with a pictogram set to allow escape route identification to be determined at installation, for both single and double sided installations. Suitable for 24m viewing distance (AS/NZS 2293). Polycarbonate body and diffuser in white finish. Simple installation with flex & plug. Low 3W standby power.

C0 - D6.3
C90 - D4

Mode selection
  • Lamp position:STD - standard
  • 650°
  • IK07
  • IP40
  • RCM
  • RoHs
  • SC2
  • Ta = 0 to +40

▼ Photometry

Photometric configuration
