  • Voyager Emergency range — VOYAGER SURFACE DISK D40 E2NM

Voyager Emergency range / VOYAGER SURFACE DISK D40 E2NM

96294578

▼ Data Sheet

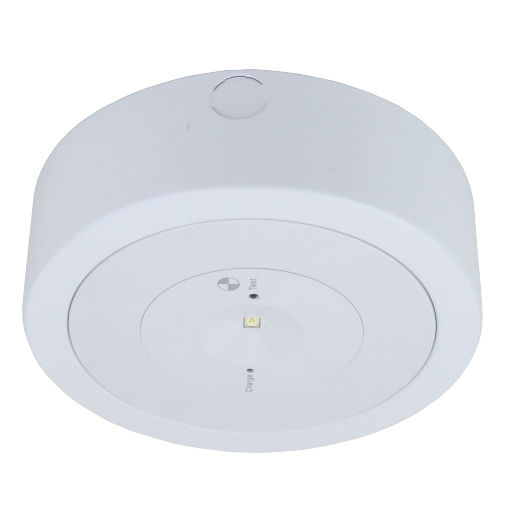

An efficient, long life, non-maintained, surface mounted ceiling LED emergency luminaire. With reliable lithium iron phosphate battery. Manual test switch. Powder coated steel housing with polycarbonate inner disc in white finish. Aluminium heat sink. Tamper resistant design, no dome required. With wide distribution for large emergency escape coverage it is ideal for open areas, D40 spacing classfication (AS/NZS 2293). Large terminal block for easy electrical connection. Dual charge rate, 3W max, 0.5W standby.

Mode selection
  • Lamp position:STD - standard
  • 650°
  • IK07
  • IP20
  • RCM
  • RoHs
  • SC1
  • Ta = 0 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
