Cesar Opera, walk over / CESAR OPERA XL WO 5L RGBW 930 MB PWM SS

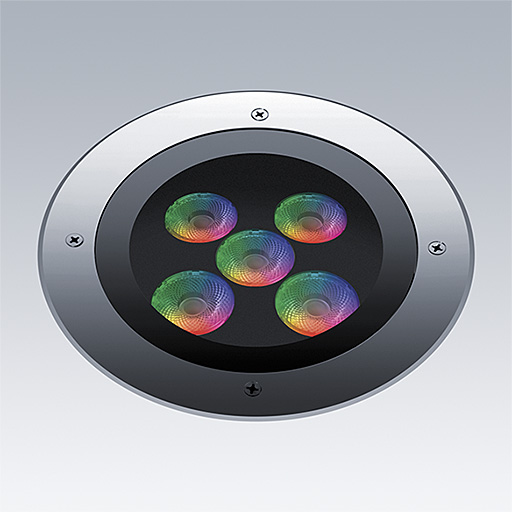

Cesar Opera, walk over RGBW, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class III electrical. Fixed output LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +37°C. Complete with RGBW LEDs.

Operate with :
96700031 DALI/DMX Remote Driver (to be ordered separately). Up to two luminaire(s).
96700032 DALI/DMX Remote Driver (to be ordered separately). Up to three luminaire(s).
96700033 DALI/DMX Remote Driver (to be ordered separately). Up to twelve luminaire(s).
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: Ø280 x 245 mm
Luminaire input power: 30.4 W
Luminaire luminous flux: 1122 lm
Luminaire efficacy: 37 lm/W
Weight: 7.01 kg

Sélection de mode

Sélection de modeSTD - Standard

• Position de la lampe:STD - Standard
• Source lumineuse:LED
• Flux lumineux du luminaire*:1122 lm
• Efficacité lumineuse du luminaire*:37 lm/W
• Indice min. de rendu des couleurs:-1
• Tolérance de la couleur (MacAdam intial):3
• Vie utile nominale (B10)*:L80 70000 h à 25 °C
• Convertisseur:0x LED_DRV
• Puissance du luminaire*:30,4 W
• Gestion d’éclairage:FIX
