  • Cesar Amp Wall — CESAR AMP S U/D 2L927WB RD BK

Cesar Amp Wall / CESAR AMP S U/D 2L927WB RD BK

96701199

▼ Data Sheet

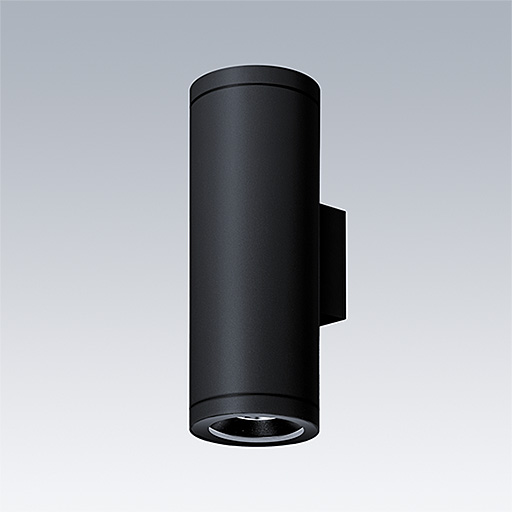

Cesar Amp Wall, small up&down a wall mounted, architectural LED luminaire for decorative facade lighting, wide beam distribution. DALI-2 dimmable Remote LED driver. Class III electrical, IP65, Impact strength: IK08. Housing: die-cast aluminium, powder coated black. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.

Dimensions: Ø90 x 250 mm
Luminaire input power: 15.3 W
Luminaire luminous flux: 860 lm
Luminaire efficacy: 56 lm/W
Weight: 2.22 kg
weight: 2.22 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:860 lm
  • Luminaire efficacy*:56 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:15.3 W
  • Dimming:Dali2Dim
  • LED
  • IK08
  • IP65
  • SC3
