  • Cesar Amp Wall — CESAR AMP L DWN 1L930MBHFX BK

Cesar Amp Wall / CESAR AMP L DWN 1L930MBHFX BK

96700115

▼ Data Sheet

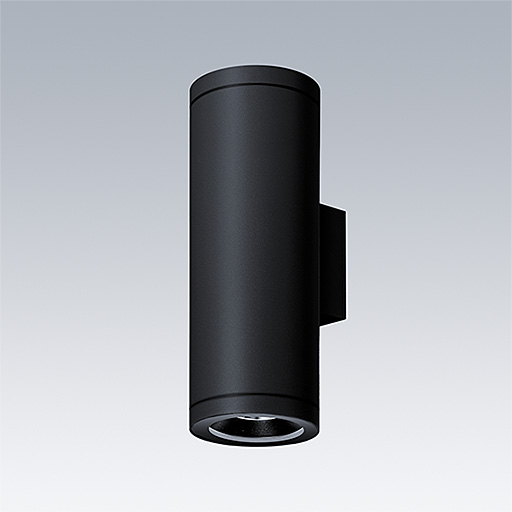

Cesar Amp Wall, large down a wall mounted, architectural LED luminaire for decorative facade lighting, medium beam distribution. DALI-2 dimmable LED driver. Class I electrical, IP65, Impact strength: IK08. Housing: die-cast aluminium, powder coated black. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 450 mm
Luminaire input power: 34.4 W
Luminaire luminous flux: 2537 lm
Luminaire efficacy: 74 lm/W
Weight: 8.2 kg
weight: 8.2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2537 lm
  • Luminaire efficacy*:74 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:34.4 W
  • Dimming:Dali2Dim
  • LED
  • IK08
  • IP65
  • SC1

▼ Photometry

Photometric configuration
