  • Axyl Greet W — AXYL GREETW M U/D 28L 940 WB HF WH

Axyl Greet W / AXYL GREETW M U/D 28L 940 WB HF WH

96700601

▼ Data Sheet

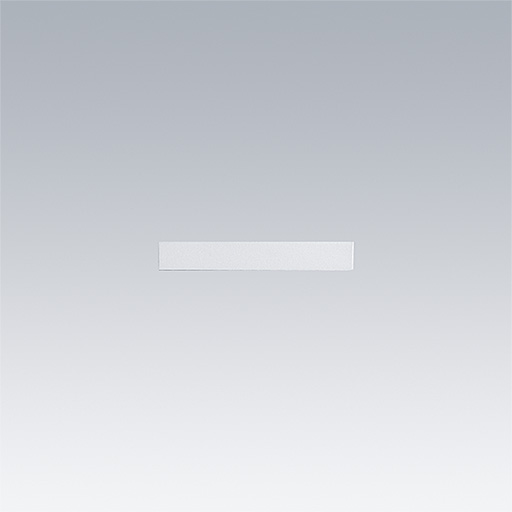

Axyl Greet W, medium up&down, a wall mounted, architectural LED luminaire for decorative facade lighting, 2 windows with wide beam up and down distribution. Class II electrical (this product is not earthed).. Fixed output LED driver. , IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED..

Dimensions: 220 x 80 x 33 mm
Luminaire input power: 8.6 W
Luminaire luminous flux: 677 lm
Luminaire efficacy: 79 lm/W
Weight: 0.83 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:677 lm
  • Luminaire efficacy*:79 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:8.6 W Power factor = 0.79
  • Dimming:FIX
  • LED
  • IK06
  • IP65
  • SC2

▼ Photometry

Photometric configuration
