  • Axyl Greet W — AXYL GREETW L U/D 56L 940 WB RD WH

Axyl Greet W / AXYL GREETW L U/D 56L 940 WB RD WH

96701660

▼ Data Sheet

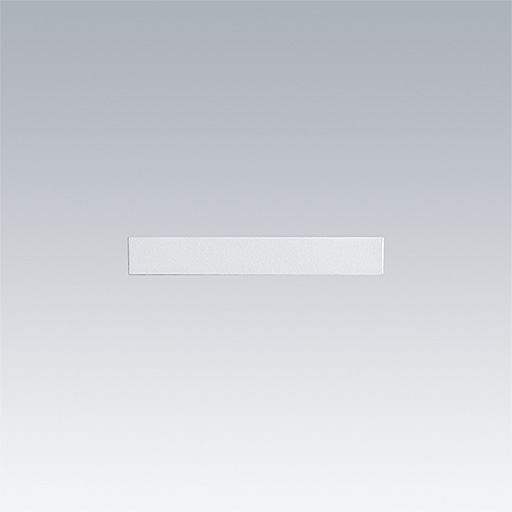

Axyl Greet W, large up&down, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam up and down distribution. Class III electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK04. Housing: die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED..

Dimensions: 290 x 105 x 43 mm
Luminaire input power: 12.1 W
Luminaire luminous flux: 1081 lm
Luminaire efficacy: 89 lm/W
Weight: 1.66 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1081 lm
  • Luminaire efficacy*:89 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:12.1 W Power factor = 0.99
  • Dimming:Dali2Dim
  • LED
  • IK04
  • IP65
  • SC3
