  • Axyl Gild — AXYL GILD L 2W 28L 927 UWB RD ANT

Axyl Gild / AXYL GILD L 2W 28L 927 UWB RD ANT

96701539

▼ Data Sheet

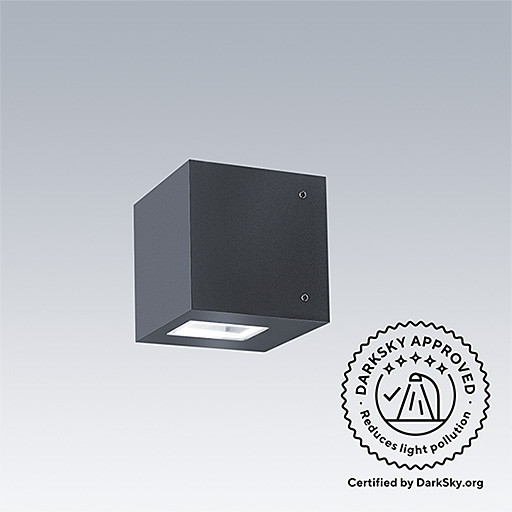

Axyl Gild, large 2 windows, a wall mounted, architectural LED luminaire for decorative facade lighting, 2 windows with Ultra wide beam distribution. Class III electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..

Dimensions: 265 x 100 x 110 mm
Luminaire input power: 16 W
Luminaire luminous flux: 1520 lm
Luminaire efficacy: 95 lm/W
Weight: 2.39 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1520 lm
  • Luminaire efficacy*:95 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:16 W Power factor = 0.86
  • Dimming:Dali2Dim
  • LED
  • IDA
  • IK06
  • IP65
  • SC3

▼ Photometry

Photometric configuration
