  • Cesar Strut — CESAR STRUT H3500 1L940 S/S HFX WH

Cesar Strut / CESAR STRUT H3500 1L940 S/S HFX WH

96700278

▼ Data Sheet

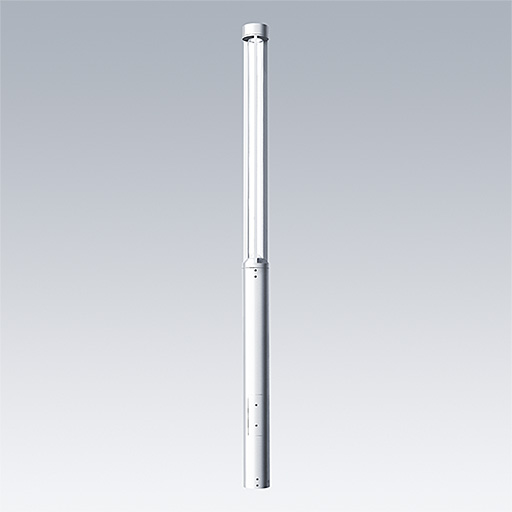

Cesar STRUT a free-standing, architectural LED luminaire for decorative facade lighting, distribution. DALI-2 dimmable LED driver. Class II electrical (this product is not earthed), IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated white. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED.

Dimensions: Ø200 x 3500 mm
Luminaire input power: 55 W
Luminaire luminous flux: 4352 lm
Luminaire efficacy: 79 lm/W
Weight: 31.28 kg
weight: 31.28 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4352 lm
  • Luminaire efficacy*:79 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:55 W
  • Dimming:Dali2Dim
  • LED
  • IK10
  • IP65
  • SC2

▼ Photometry

Photometric configuration
