  • Cesar Stroll B — CESAR STROLL B H950 1L927 S/S HFX GY

Cesar Stroll B / CESAR STROLL B H950 1L927 S/S HFX GY

96700252

▼ Data Sheet

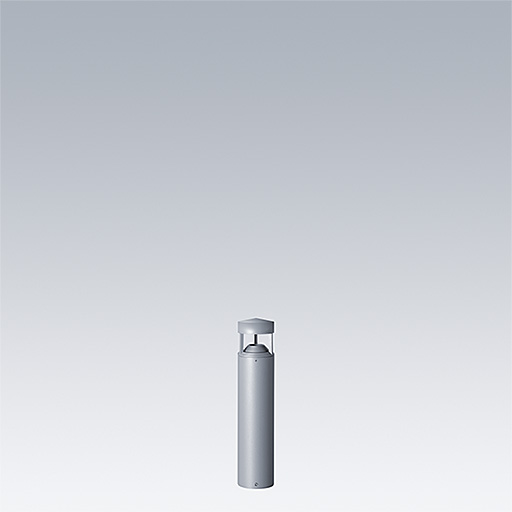

Cesar Stroll B a free-standing, decorative LED bollard. distribution. DALI-2 dimmable LED driver. Class II electrical (this product is not earthed), IP65, Impact strength: IK10. Housing: die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.

Dimensions: Ø200 x 950 mm
Luminaire input power: 35.1 W
Luminaire luminous flux: 1843 lm
Luminaire efficacy: 53 lm/W
Weight: 10.61 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1843 lm
  • Luminaire efficacy*:53 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:35.1 W
  • Dimming:Dali2Dim
  • LED
  • IK10
  • IP65
  • SC2
