  • Avenue — AV 12L35-730 WSC GL CL2 WS0.3 T42E ANT

Avenue / AV 12L35-730 WSC GL CL2 WS0.3 T42E ANT

93991127

▼ Data Sheet

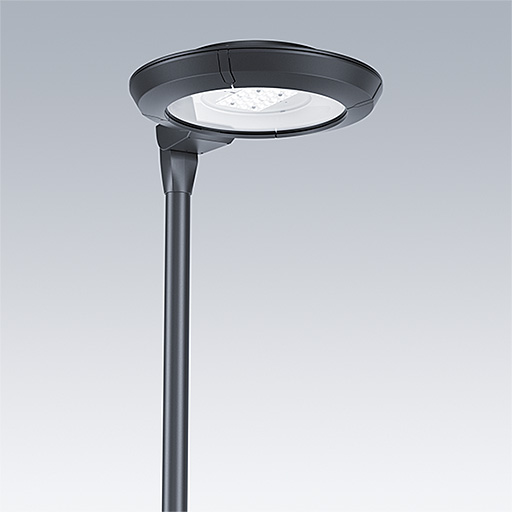

Sustainable urban lighting without compromise with 12 LEDs driven at 350mA and a Wide Street Comfort distribution optic. Class II electrical (this product is not earthed), IP66, Impact strength: IK10.Electronic, fixed output control gear. Body: die-cast aluminium in anthracite (close to RAL7043). Robust solution with excellent corrosion resistance of C5. Enclosure: flat glass. Lateral top mounting D42mm, 0° tilt Pre-wired with 0.3m, 1.5mm² H07RN-F cable. Complete with 3000K LED

Dimensions: Ø501 x 213 mm
Luminaire input power: 13.7 W
Luminaire luminous flux: 1980 lm
Luminaire efficacy: 145 lm/W
Weight: 8.71 kg
Scx: 0.13 m²

Mode selection
    • GLedReP
    • IK10
    • IP66
    • Coastal_C5
    • LLedReP
    • RCM
    • SC2
    • Ta=35°C
    • UKCA

    ▼ Photometry

    Photometric configuration
