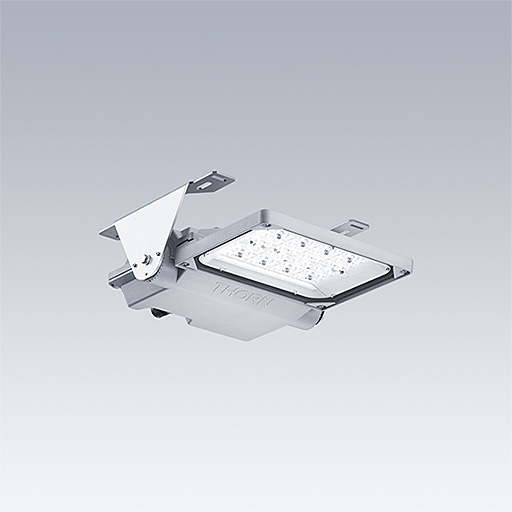

Areaflood Pro 2, Tunnel / AFP2 S 48L50-740 TUN CB2-LV HFX CL2 ->

A compact, lightweight, general purpose LED area floodlight. With small body. driving 48 LEDs at 500mA with counterbeam light distribution. IP66, Impact strength: IK08, Class II electrical (this product is not earthed). Body: Die-cast aluminium (EN AC-44300). Light grey 150 sanded texture (close to RAL9006). Enclosure: 5mm thick toughened glass.

Suitable for tunnel environments with C5 corrosion resistance, all stainless steel fixings treated to prevent bimetallic reaction and tested to withstand 3G vibration.

Mounting designed to suit standard cable trays and ladders formed from galvanised steel (contact Thorn regarding mounting on stainless steel structures) and providing the option to tilt the fitting to +21 deg for small and +12deg for medium and +9deg large body sizes.
Supplied pre-wired with low smoke and zero halogen cable including cores for DALI control connection.Complete with 4000K LED.

Dimensions: 450 x 375 x 143 mm
Luminaire input power: 72.2 W
Luminaire luminous flux: 10600 lm
Luminaire efficacy: 147 lm/W
weight: 7.38 kg
Scx: 0.052 m

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:10600 lm
• Luminaire efficacy*:147 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003162 LCO 90/200-1050/165 o4a NFC C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated median useful life*:L95 100000 h at 25 °C
• Luminaire input power*:72 W Power factor = 0.98
• Dimming:SETDALI
