  • Cesar Opera, walk over — CESAR OPERA M WO 1L 930 WB RD ANT

Cesar Opera, walk over / CESAR OPERA M WO 1L 930 WB RD ANT

96701679

▼ Data Sheet

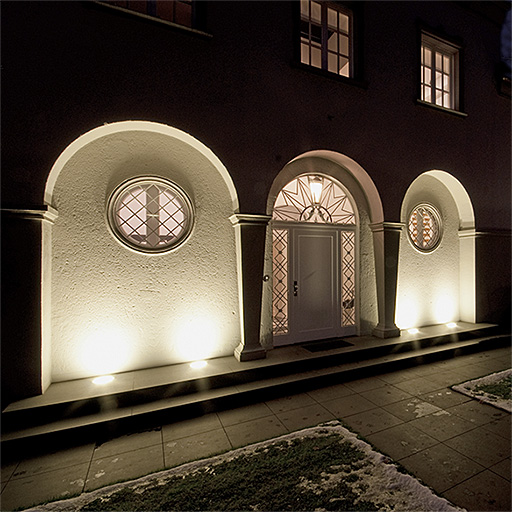

Cesar Opera, walk over a floor recessed, LED luminaire for decorative facade lighting, wide beam distribution.. Remote DALI2 driver LED driver. Class III electrical IP67, Impact strength: IK09. Housing: die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to six luminaire(s).
Maximum operating current : 500mA.
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: Ø165 x 135 mm
Luminaire input power: 3 W
Luminaire luminous flux: 1148 lm
Luminaire efficacy: 383 lm/W
Weight: 1.23 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1148 lm
  • Luminaire efficacy*:383 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:3 W
  • Dimming:RD_DALI
  • LED
  • IK09
  • IP65
  • IP67
  • RCM
  • SC3
