  • Cesar Opera, walk over — CESAR OPERA L WO 3L RGBW MB PWM SS

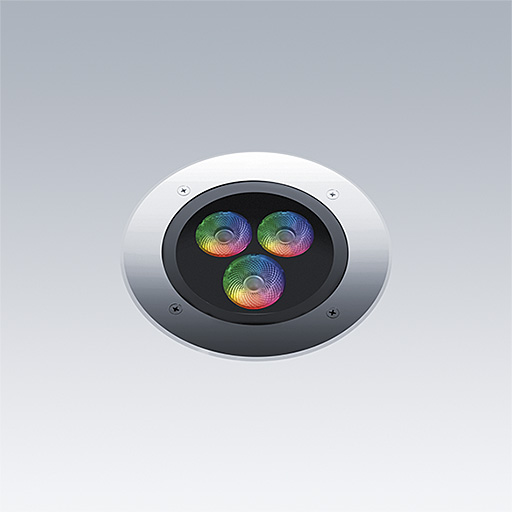

Cesar Opera, walk over / CESAR OPERA L WO 3L RGBW MB PWM SS

96701152

▼ Data Sheet

Cesar Opera, walk over RGBW, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class III electrical. Fixed output LED driver. IP67, Impact strength: IK09. Housing: die-cast aluminium, unpainted textured. Working ambient temperature: -20°C to +40°C. Complete with RGBW LEDs.

Operate with :
96700031 DALI/DMX Remote Driver (to be ordered separately). Up to three luminaire(s).
96700032 DALI/DMX Remote Driver (to be ordered separately). Up to five luminaire(s).
96700033 DALI/DMX Remote Driver (to be ordered separately). Up to twenty luminaire(s).
Maximum distance of 10m between luminaire(s) and driver.

Dimensions: Ø200 x 240 mm
Luminaire input power: 19.8 W
Luminaire luminous flux: 639 lm
Luminaire efficacy: 32 lm/W
Weight: 3.36 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:639 lm
  • Luminaire efficacy*:32 lm/W
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:19.8 W
  • Dimming:FIX
  • LED
  • IK09
  • IP65
  • IP67
  • RCM
  • SC3
