  • Axyl Trim — AXYL TRIM L VISO 6L940 A/S RD GY

Axyl Trim / AXYL TRIM L VISO 6L940 A/S RD GY

96701398

▼ Data Sheet

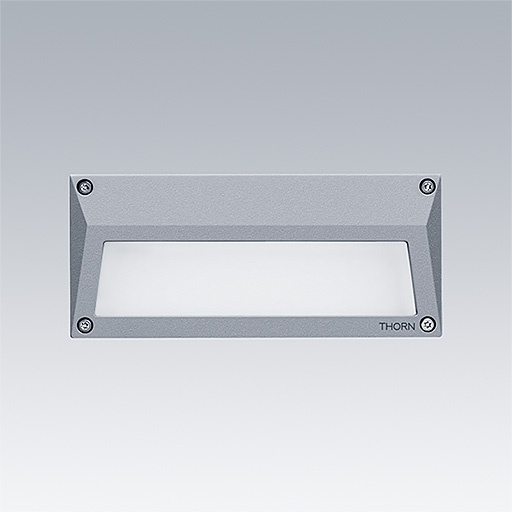

Axyl Trim, visor facia, a wall recessed, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical.. DALI-2 dimmable LED driver. Recessed box 96700290 to be order separately, IP65, Impact strength: IK06. Housing: die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +50°C. Complete with 4000K LED. Recessed box 96700290 to be order separately.

Dimensions: 230 x 102 x 95 mm
Luminaire input power: 10.9 W
Luminaire luminous flux: 289 lm
Luminaire efficacy: 27 lm/W
Weight: 1.38 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:289 lm
  • Luminaire efficacy*:27 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L80 70000 h at 25 °C
  • Ballast:0x LED_DRV
  • Luminaire input power*:10.9 W Power factor = 0.94
  • Dimming:Dali2Dim
  • LED
  • IK06
  • IP65
  • SC3

▼ Photometry

Photometric configuration
