Voyager Emergency range / VOYAGER JUMBO EXIT 40M E2M
96294583
▼ Data Sheet

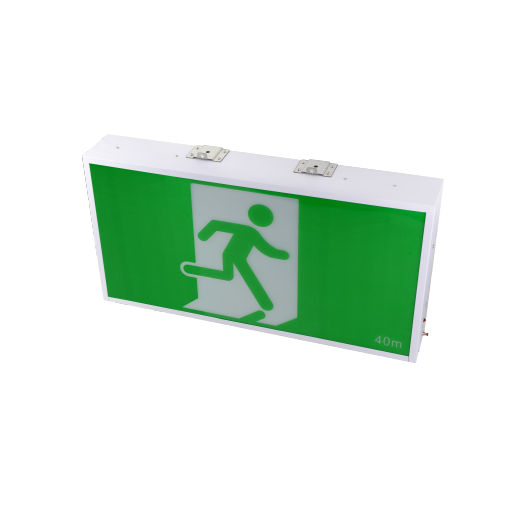

Jumbo LED escape sign luminaire, for surface ceiling, wall or suspended mounting. Maintained operation. With reliable lithium iron phosphate battery. Manual test switch. Supplied with a pictogram set to allow escape route identification to be determined at installation, for both single and double sided installations. Suitable for 40m viewing distance (AS/NZS 2293). Powder coated metal frame with polycarbonate diffuser in white finish. Simple installation with large terminal block and cable entry. Low 5.3W standby power.
- 650°
- IK07
- IP40
- RCM
- RoHs
- SC1
- Ta = 0 to +40
