  • Voyager Emergency range — VOYAGER BLADE SURFACE 24M E2M

Voyager Emergency range / VOYAGER BLADE SURFACE 24M E2M

96294579

▼ Data Sheet

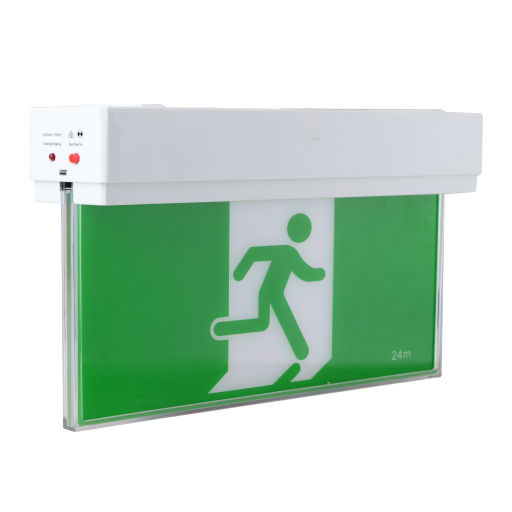

Universal LED escape sign luminaire, for surface ceiling or wall mounting. Slim blade for enhanced design aesthetics. Maintained operation. With reliable lithium iron phosphate battery. Manual test switch. Supplied with a pictogram set to allow escape route identification to be determined at installation, for both single and double sided installations. Suitable for 24m viewing distance (AS/NZS 2293). Polycarbonate body and diffuser in white finish. Simple installation with large terminal block and cable entry. Low 3W standby power.

C0 - D8
C90 - D4

Mode selection
  • Lamp position:STD - standard
  • 650°
  • IK07
  • IP40
  • RCM
  • RoHs
  • SC2
  • Ta = 0 to +40

▼ Photometry

Photometric configuration
