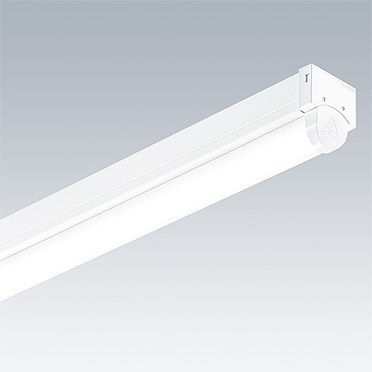

PopPack LED
Réglette LED pour le remplacement des luminaires fluorescents T8
- Remplacement LED des réglettes fluorescentes T8/T5, simples ou doubles, grâce à ses dimensions de 600, 1200, 1500 ou 1800 mm
- Efficacité jusqu’à 153 lm/W
- Puissance de 24 W à 74 W, jusqu'à 11 000 lm, pour des économies d'énergie de plus de 67% par rapport au fluorescent traditionnel
- D’autres économies peuvent être réalisées avec la version gradable DALI ou un détecteur de présence/lumière du jour (PIR) intégré
- Consulter notre site internet pour plus d'options via myProduct
- Durée de vie des LED de 50 000 H @L80B50 à 25 °C
- Versions adapted for mounting onto Contus trunking available.
Matériaux et finition
Batten: pre-coated roll form steel, white (RAL9016)
End caps/lamp holders: injection moulded polycarbonate, white
Diffuser: textured opal acrylic
Contus adapter: pre-coated roll form steel, white (similar to RAL9016)
Installation et montage
1 or 2 x (3 x 2 x 2.5mm²) terminal blocks with capacity for loop in/out 2.5mm² cables. Ambient temperature: -20 to +25°C for the standard product, 0 to 25°C for the emergency versions, normal, dry, indoor atmospheres. Suitable for direct surface mounting, BESA mounting or wire suspension. Easy alignment through slots in the spine. Optional screws can be added to end caps to lock the housing.
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
Prescription
Réglette LED avec platine LED interchangeable. Version gradable ou non gradable. Efficacité lumineuse supérieur à 147 lm/W. Installation en ligne en les fixant bout-à-bout. Repiquage possible.
New Product
LumExpress Product
Produit eControl
▼ Réglette, PopPack
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HF L1800 | 74 | 10900 | LED | 1.80 | 96631570 | ||||
| POPPACK LED 1700-840 HF L600 | 11 | 1700 | LED | 0.74 | 96634320 | ||||
| POPPACK LED 2300-840 HF L600 | 17 | 2300 | LED | 0.74 | 96634321 | ||||
| POPPACK LED 3000-830 HF L1200 | 24 | 3200 | LED | 1.40 | 96631574 | ||||
| POPPACK LED 3000-840 HF L1200 | 24 | 3350 | LED | 1.30 | 96631538 | ||||
| POPPACK LED 4500-830 HF L1200 | 36 | 4450 | LED | 1.40 | 96631575 | ||||
| POPPACK LED 4500-840 HF L1200 | 36 | 4650 | LED | 1.40 | 96631542 | ||||
| POPPACK LED 5000-830 HF L1500 | 36 | 4700 | LED | 1.70 | 96631578 | ||||
| POPPACK LED 5000-840 HF L1500 | 36 | 4900 | LED | 1.70 | 96631554 | ||||
| POPPACK LED 6000-830 HF L1500 | 53 | 6050 | LED | 1.70 | 96631579 | ||||
| POPPACK LED 6000-840 HF L1500 | 53 | 6400 | LED | 1.70 | 96631558 | ||||
| POPPACK LED 6500-830 HF L1800 | 54 | 6450 | LED | 1.80 | 96631580 | ||||
| POPPACK LED 6500-840 HF L1800 | 54 | 6800 | LED | 1.80 | 96631566 | ||||
| POPPACK LED 7000-830 HF L1200 | 52 | 6900 | LED | 1.40 | 96631576 | ||||
| POPPACK LED 7000-840 HF L1200 | 52 | 7300 | LED | 1.40 | 96631546 | ||||
| POPPACK LED 9000-840 HF L1500 | 64 | 9100 | LED | 1.70 | 96631562 |
▼ Réglette, PopPack gradable
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HFI L1800 | 74 | 10900 | LED | 1.80 | 96631572 | ||||
| POPPACK LED 1700-840 HFI L600 | 11 | 1700 | LED | 0.83 | 96634322 | ||||
| POPPACK LED 2300-840 HFI L600 | 17 | 2300 | LED | 0.83 | 96634323 | ||||
| POPPACK LED 3000-840 HFI L1200 | 24 | 3350 | LED | 1.40 | 96631540 | ||||
| POPPACK LED 4500-840 HFI L1200 | 36 | 4650 | LED | 1.40 | 96631544 | ||||
| POPPACK LED 5000-840 HFI L1500 | 36 | 4900 | LED | 1.70 | 96631556 | ||||
| POPPACK LED 6000-840 HFI L1500 | 53 | 6400 | LED | 1.70 | 96631560 | ||||
| POPPACK LED 6500-840 HFI L1800 | 54 | 6800 | LED | 1.80 | 96631568 | ||||
| POPPACK LED 7000-840 HFI L1200 | 52 | 7300 | LED | 1.40 | 96631548 | ||||
| POPPACK LED 9000-840 HFI L1500 | 64 | 9100 | LED | 1.70 | 96631564 |
▼ Réglettes de la gamme Popular, version de secours
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HF E3 L1800 | 74 | 10900 | LED | 2.50 | 96631571 | ||||
| POPPACK LED 3000-840 HF E3 L1200 | 24 | 3350 | LED | 2.00 | 96631539 | ||||
| POPPACK LED 4500-840 HF E3 L1200 | 36 | 4650 | LED | 2.00 | 96631543 | ||||
| POPPACK LED 5000-840 HF E3 L1500 | 36 | 4900 | LED | 2.30 | 96631555 | ||||
| POPPACK LED 6000-840 HF E3 L1500 | 53 | 6400 | LED | 2.30 | 96631559 | ||||
| POPPACK LED 6500-840 HF E3 L1800 | 54 | 6800 | LED | 2.50 | 96631567 | ||||
| POPPACK LED 7000-840 HF E3 L1200 | 52 | 7300 | LED | 2.00 | 96631547 | ||||
| POPPACK LED 9000-840 HF E3 L1500 | 64 | 9100 | LED | 2.30 | 96631563 |
▼ Réglettes de la gamme Popular, gradables, version de secours
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 HFI E3 L1800 | 74 | 10900 | LED | 2.50 | 96631573 | ||||
| POPPACK LED 3000-840 HFI E3 L1200 | 24 | 3350 | LED | 2.00 | 96631541 | ||||
| POPPACK LED 4500-840 HFI E3 L1200 | 36 | 4650 | LED | 2.00 | 96631545 | ||||
| POPPACK LED 5000-840 HFI E3 L1500 | 36 | 4900 | LED | 2.30 | 96631557 | ||||
| POPPACK LED 6000-840 HFI E3 L1500 | 53 | 6400 | LED | 2.30 | 96631561 | ||||
| POPPACK LED 6500-840 HFI E3 L1800 | 54 | 6800 | LED | 2.50 | 96631569 | ||||
| POPPACK LED 7000-840 HFI E3 L1200 | 52 | 7300 | LED | 2.00 | 96631549 | ||||
| POPPACK LED 9000-840 HFI E3 L1500 | 64 | 9100 | LED | 2.30 | 96631565 |
▼ Réglette, PopPack, avec détecteur
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED 11000-840 PIR L1800 | 74 | 10900 | LED | 1.80 | 96631589 | ||||
| POPPACK LED 3000-840 PIR L1200 | 24 | 3350 | LED | 1.40 | 96631581 | ||||
| POPPACK LED 4500-840 PIR L1200 | 36 | 4650 | LED | 1.40 | 96631582 | ||||
| POPPACK LED 5000-840 PIR L1500 | 36 | 4900 | LED | 1.70 | 96631585 | ||||
| POPPACK LED 6000-840 PIR L1500 | 53 | 6400 | LED | 1.70 | 96631586 | ||||
| POPPACK LED 6500-840 PIR L1800 | 54 | 6800 | LED | 1.80 | 96631588 | ||||
| POPPACK LED 7000-840 PIR L1200 | 52 | 7300 | LED | 1.40 | 96631583 | ||||
| POPPACK LED 9000-840 PIR L1500 | 64 | 9100 | LED | 1.70 | 96631587 |
▼ Accessoires PopPack
| Description | Poids (kg) | Code SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| POPPACK LED GROMMET KIT | 0.04 | 59010377 | |||||||
| POPPACK LED SCREW KIT x100 | 0.08 | 59010829 | |||||||
| POPPACK LED SCREW KIT x20 | 0.06 | 59010828 | |||||||
| POPPACK LED WIRE GUARD 1,2M | 0.69 | 96627902 | |||||||
| POPPACK LED WIRE GUARD 1,5m | 0.74 | 96628147 | |||||||
| POPPACK LED WIRE GUARD 1,8M | 1.04 | 96627903 | |||||||
| POPPACK LED WIRE SUSPENSION KIT 2M | 0.25 | 96627711 | |||||||
| SWITCHLITE CC PROGRAMMER | 0.02 | 96240295 |
